Longspan Shelving
Long-Span shelving uses the same design concept as traditional Pallet Racking using a smaller 60mm x 50mm frame profile.
With a very high quality Dark Grey ( Frame ) and Dark Grey ( Beam ) powder coated finish this type of shelving is very versatile and has many uses including:

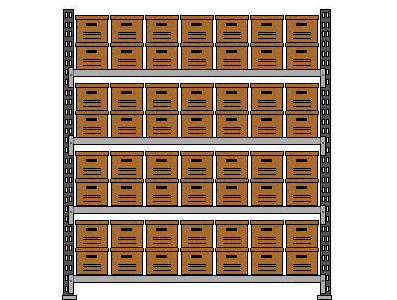

Document Archive Shelving
Home Garage Shelving
Parts Bin Shelving

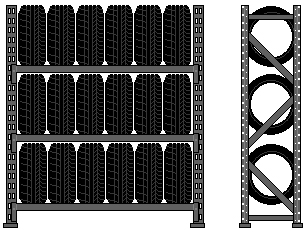

Tyre Shelving
Shipping Container Shelving
Bolted frames and step beams are combined to create a fully adjustable shelving system that can easily be broken down into component form and relocated.
Dickman supplies 3 x shelf options to cover a variety of heavy duty industrial applications and light duty garage storage applications.
- Particle Board / Steel Mesh Decks / Melamine Board

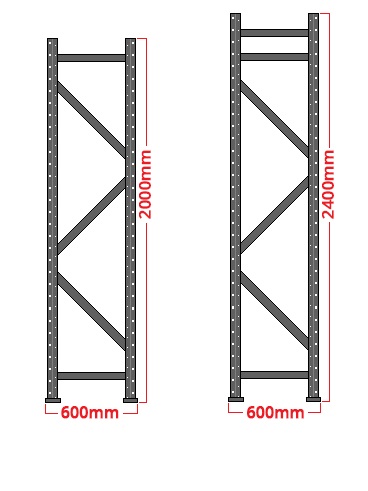

Long-span Frames
Our HD Long Span Frames are sold in 4 x height sizes 2000mm, 2400mm, 3000mm & 4000mm. The most common depth is 600mm, 460mm, 900mm & 1200mm deep frames are available.
The upright profile 0f 60mm x 50mm x 1.5mm is of industrial specification and LS frames have a bay load of up to 3000kg.
Front View
Side View
TOP VIEW

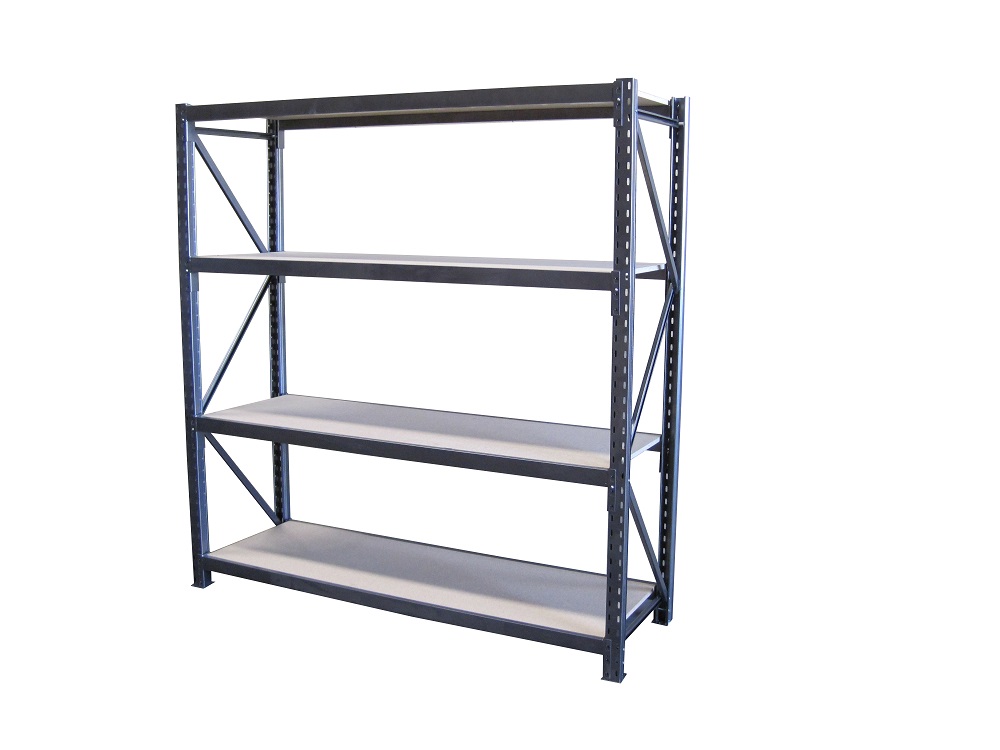

Long-Span With Board
| EM # | DESCRIPTION | COLOUR | WEIGHT | QTY/PACK | UNIT | PACKING TYPE | UNIT PRICE (EXCL GST) | LENGTH WIDTH HEIGHT |
FITTED WITH |
|---|---|---|---|---|---|---|---|---|---|
| MPR | MPR LONGSPAN | GREY | 86KG | 1 | Each | SKID | $320 | 2000MM H X 1800MM L X 600MM DEEP |
BOARD |
| MPR | MPR LONGSPAN / EXTENSION BAY | GREY | 70KG | 1 | Each | SKID | $280 | BOARD | |
| MPR | MPR LONGSPAN EXTRA SHELF | GREY | 20KG | 1 | Each | SKID | $65 | 1800MM X 600MM |
BOARD |
Long-Span With Gal Panels
| EM # | DESCRIPTION | COLOUR | WEIGHT | QTY/PACK | UNIT | PACKING TYPE | UNIT PRICE (EXCL GST) | LENGTH WIDTH HEIGHT |
FITTED WITH |
|---|---|---|---|---|---|---|---|---|---|
| MPR | MPR LONGSPAN | GREY | 86KG | 1 | Each | SKID | $390 | 2000MM H X 1800MM L X 600MM DEEP |
GAL PANELS |
| MPR | MPR LONGSPAN / EXTENSION BAY | GREY | 70KG | 1 | Each | SKID | $350 | GAL PANELS | |
| MPR | MPR LONGSPAN / EXTENSION BAY | GREY | 20KG | 1 | Each | SKID | $80 | 1800MM X 600MM |
GAL PANELS |
Long-Span With Mesh Decks
| EM # | DESCRIPTION | COLOUR | WEIGHT | QTY/PACK | UNIT | PACKING TYPE | UNIT PRICE (EXCL GST) | LENGTH WIDTH HEIGHT |
FITTED WITH |
|---|---|---|---|---|---|---|---|---|---|
| MPR | MPR LONGSPAN | GREY | 86KG | 1 | Each | SKID | $370 | 2000MM H X 1800MM L X 600MM DEEP |
MESH DECKS |
| MPR | MPR LONGSPAN / EXTENSION BAY | GREY | 70KG | 1 | Each | SKID | $330 | MESH DECKS | |
| MPR | MPR LONGSPAN / EXTENSION BAY | GREY | 70KG | 1 | Each | SKID | $75 | 1800MM X 600MM |
MESH DECKS |
THE BENEFITS OF MPR LONGSPAN
1.LONGSPAN HAS A WEIGHT LOADING OF 400KGS PER SHELF UDL.
2.ALL FRAMES COME ASSEMBLED.
3.NO UN PACKING.
4.INSTALL TIMES DOWN TO 5 MINS PER BAY.
5.UNITS ARE AVAILABLE WITH BOARD, MESH, AND GAL PANELS.
6.LONGSPAN HAS A FOOTPLATE SO IT CAN BE TEK SCREWED TO FLOOR OF CONTAINER OR DYNA BOLTED TO CONCRETE FLOOR.
7.MORE COST EFFECTIVEAS YOU CAN JOIN ON TO UNITS.

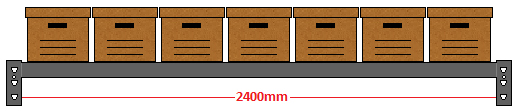

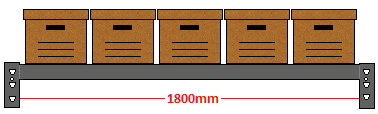

Dickman supplies 6 x beam lengths: 900mm, 1200mm, 1500mm, 1800mm, 2100mm & 2400mm.
Long-span beams are “stepped” to allow for any of the shelf options to sit flush with no screws or clips required, a beam profile 0f 60mm x 40mm ensures each shelf level has an industrial capacity of over 500 kg UDL.
Starter Bay & Add On Bay Examples
1800mm Starter Bay
Frames: 2 x 2000mm x 600mm
Beams: 8 x 1800mm
Shelf: 4 x boards 1800mm x 600mm

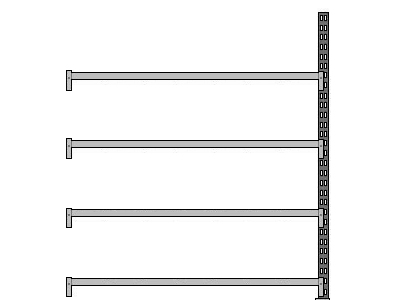

1800mm Add-on Bay
Frames: 1 x 2000mm x 600mm
Beams: 8 x 1800mm
Shelf: 4 x board 1800mm x 600mm
Long-span Shelf Options
Timber Particle
Board Shelf
White Melamine
Board
Wire Mesh
Deck
Dickman Pallet Racking and Shelving has 3 shelf options:
- Timber Particle Board –
Pros: Most cost effective shelf option.
Cons: Stains easily & can become dusty. - White Melamine Board –
Pros: Easy to clean dust, very presentable.
Cons: Less cost effective than standard timber. - Steel Wire Mesh Deck –
Pros: Strong & long lasting, water & liquid friendly.
Cons: Boxes don’t slide well on wire mesh, increased cost.
