Pallet Racking
Pallet Racking has been in use since the 1920’s and evolved from the invention of the first forklift in 1915, this allowed warehouses to build upward rather than outward.
Today Selective Pallet Racking is the most basic and cost effective way of storing palletized goods effectively and efficiently.
Selective Racking is the most common form of Pallet Racking in Australia and is normally configured using 838mm wide frames, this frame width is to allow for the Australian Standard Pallet size of 1165mm x1165mm to nest correctly in between the cross beams of the racking system.
Dickman Pallet Racking & Shelving stock New and Used Pallet Racking only supplying Pallet Racking that is 100% AS4084:2012 Australian Standards tested and certified and we use only Licensed Racking Installers whom are BSA registered in Queensland for all our installations.
Pallet Racking Safety Audits should be carried out annually as per Australian Standards.

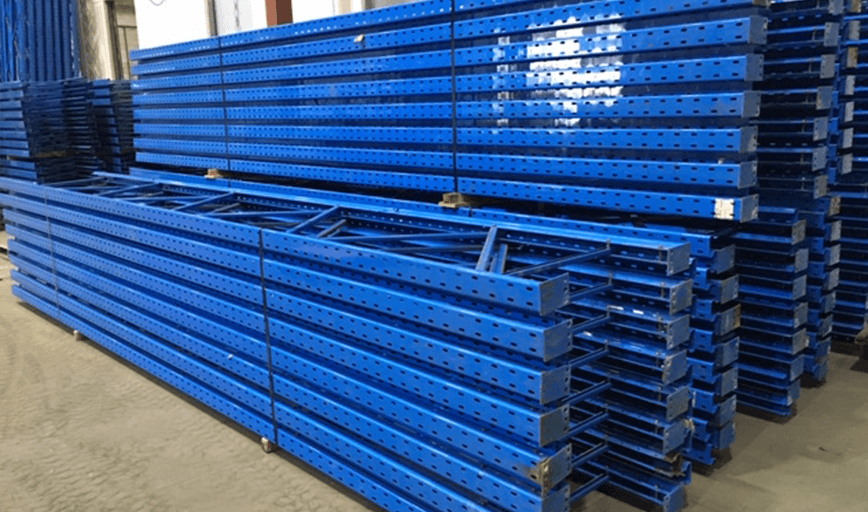

Pallet Racking Frames
Our frames are DEXION Equivalent and use the 76.2mm pitch upright allowing the beam heights to be adjusted to the exact required pallet height and this pitch is the most common in the Australian marketplace over the last 30 years.
The dickman profile of 90mm x 67mm x 2.0mm and a HD foot plate spec is applied to all our Pallet Racking frames, this ensures our frames not only meet & exceed AS4084 standards but have an 11,000kg+ bay load rating allowing for multiple beam levels of the same capacity throughout the system.
76.2mm Pitch
Upright Column
Upright Profile
Section
Beam Connector

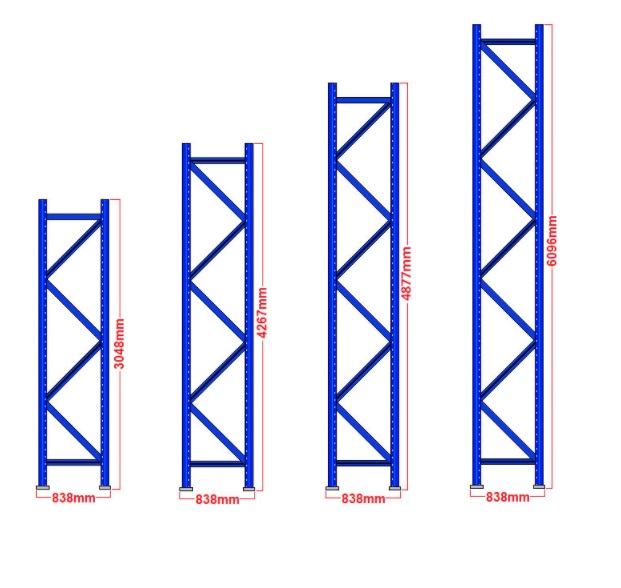

| Part Number | Description | Size | Availability | Frame Price |
|---|---|---|---|---|
| PRF3048 | Upright Frame (Blue) with Std Baseplate | 3048mm X 838mm (90* 67* 2.0) | IN STOCK | $140+GST |
| PRF3658 | Upright Frame (Blue) with HD Baseplate | 3658mm X 838mm (90* 67* 2.0) | IN STOCK | $145+GST |
| PRF4267 | Upright Frame (Blue) with HD Baseplate | 4267mm X 838mm (90* 67* 2.0) | IN STOCK | $175+GST |
| PRF4877 | Upright Frame (Blue) with HD Baseplate | 4877mm X 838mm (90* 67* 2.0) | IN STOCK | $195+GST |
| PRF6096 | Upright Frame (Blue) with HD Baseplate | 6096mm X 838mm (90* 67* 2.0) | IN STOCK | $250+GST |
Please Note:
• All FRAMES are sold in UN-assembled component form, this is for freight cost purposes.
• Frames can be Assembled by us for a small labour fee and shipped if required.
• Other frame heights and upright profiles available upon request.
• 4x Floor fixings ( Dyna Bolts ) per frame are included with all Pallet Racking frames supplied.
• Dickman pallet racking can arrange an Installation of a Pallet Racking System using our trusted licensed installers.
• A Safe Working Loads SWL sign is required to be completed and attached to all newly installed racking runs.

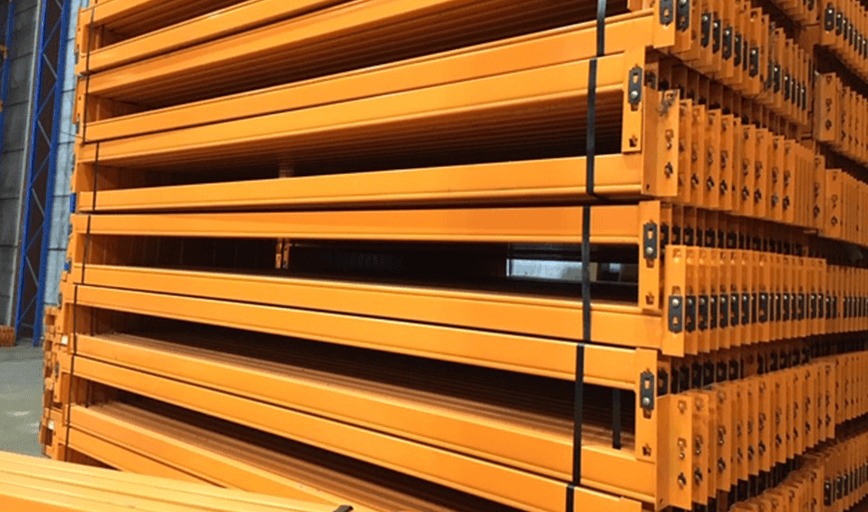

Pallet Racking Beams
Single Pallet Beam
PRB1372$40 +GST
Standard Double Pallet Beam
PRB2591$55 +GST

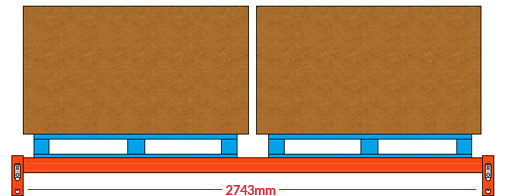

Extended Double Pallet Beam
PRB2743$56 +GST

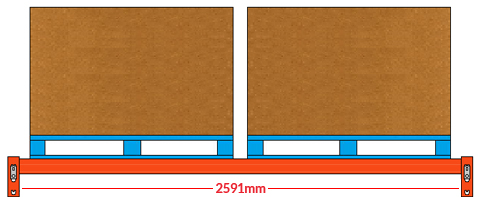

Cross beams are normally configured using a 2591mm beam ( 8.5 ft or 102 inches ), this beam width is to allow for 2x Australian Standard Pallets to rest side by side and have the correct clearances between them.
Cross beams are made from mild steel and are folded into a box shape and powder coated. Our box beams have a per pair maximum capacity of 2000kg – 3000kg this is to suit a pallet weight of up to 1000kg – 1500kg.
| Part Number | Description | Size | Capacity | Availability | Price |
|---|---|---|---|---|---|
| PRB1372 | Single Pallet Box Beam (RAL2004 ORANGE) | 1372mm (60* 50* 1.5) | 1500KG | IN STOCK | $40+GST |
| PRB2591 | Standard Double Pallet Box Beam (RAL2004 ORANGE) | 2591mm (100* 50* 1.5) | 2400KG | IN STOCK | $55+GST |
| PRB2591HD | Standard Double Pallet HD Box Beam (RAL2004 ORANGE) | 2591mm (110* 50* 1.5) | 2700KG | IN STOCK | $65+GST |
| PRB2743 | Extended Double Pallet Box Beam (RAL2004 ORANGE) | 2743mm (100* 50* 1.5) | 2100KG | IN STOCK | $56+GST |
| PRB2743HD | Extended Double Pallet HD Box Beam (RAL2004 ORANGE) | 2743mm (110* 50* 1.5) | 2500KG | IN STOCK | $66+GST |
| PRB3048 | Extra Long HD Box Beam (RAL2004 ORANGE) | 3048mm (110* 50* 1.5) | 2200KG | IN STOCK | $70+GST |
| PRB3810 | Triple Pallet HD Box Beam (RAL2004 ORANGE) | 3810mm (130* 50* 1.5) | 2200KG | IN STOCK | $95+GST |
| *Capacity per beam pair UDL | |||||
Please Note:
• All BEAMS are supplied with 2x safety locking clips included in the cost of the beam.
• Beam capacities listed are based on a beam pair with a Uniformly Distributed Load UDL.
• Other Beam sizes and Beam profiles available upon request.
• Dickman can arrange an Installation of a Pallet Racking System using our trusted licensed installer.
• A Safe Working Loads SWL sign is required to be completed and attached to all newly installed racking runs.
Starter Bay & Add On Bay Examples

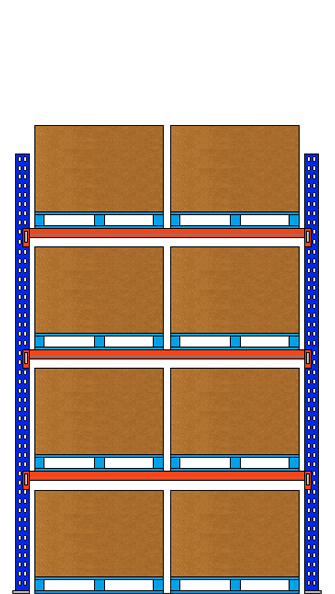

8 x Pallet Starter Bay
Frame: 2 x PRF4877
Beams: 6 x PRB2591

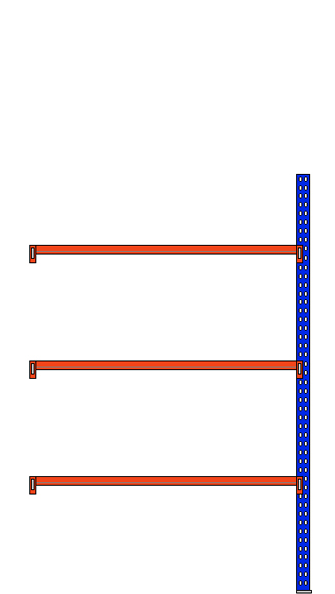

8 x Pallet Add On Bay
Frame: 1 x PRF4877
Beams: 6 x PRB2591

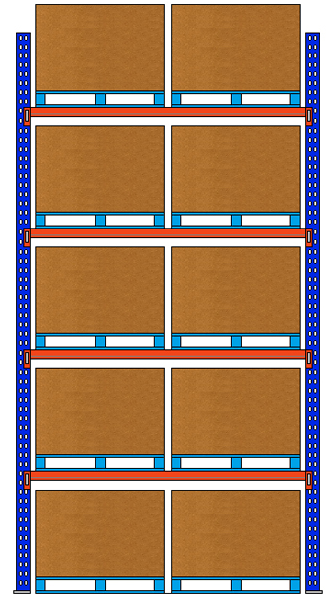

10 x Pallet Starter Bay
Frame: 2 x PRF6096
Beams: 8 x PRB2591

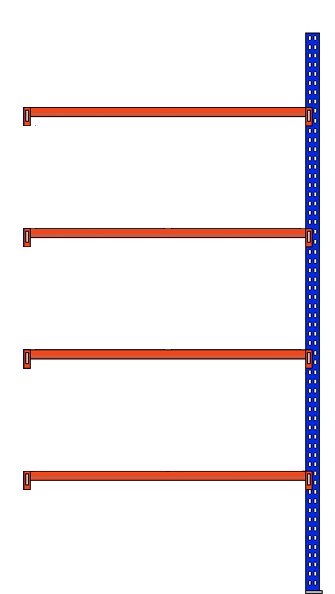

10 x Pallet Add On Bay
Frame: 1 x PRF6096
Beams: 8 x PRB2591
SECOND HAND PALLET RACKING
We stock and source the below brands of certified Used Pallet Racking:
- Genuine Dexion
- SSI Schaefer
- Colby
- Stow
- Space Rack
- Mac Rack
- APC
- Brownbuilt
Please send your used Racking requirements to : dennis@dickmanracking.com.au
Nobody knows New & Used Pallet Racking & Shelving like Dickman Racking.
We also know you want it at the best possible price!
We also know you want it at the best possible price!
